STEEL sheets
thickness and material properties. Steel sheets can be of low, medium or high carbon content.

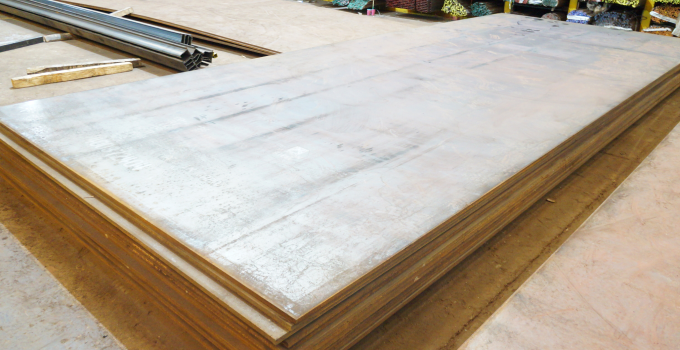

Structural HR
HR steel sheets, or hot-rolled steel sheets, are flat steel products obtained by hot rolling from steel slabs. This steel class is used in the construction industry for buildings, bridges, oil structures, off-shore applications, transmission and telecommunications towers, etc. They can be found in planes (sheets, coils) and lengths (angles, channels, plates, beams).

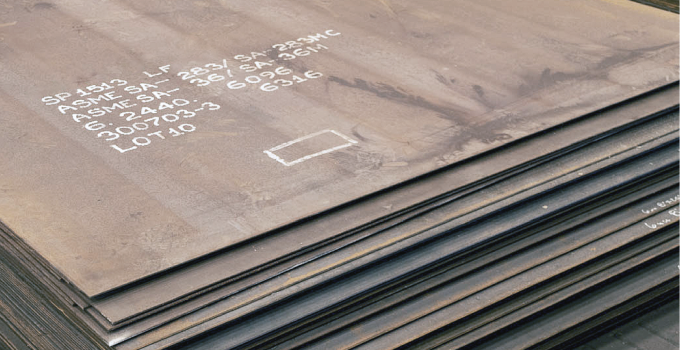

Sheets for pressure vessels
Carbon steel sheets according to ASME and ASTM standards, A283 GrC, A516 Gr70, A537 C1, C2. They stand out for their high resistance to pressure at any temperature, both high and low. They have good levels of weldability and resilience, being suitable for standardised processes, annealing and stress elimination. Both treatments neutralise the localised hardening effect in the welding area.
- HR A516 Gr70 sheets Application: Medium high-temperature pressure vessels.
- HR A283 GrC Sheets Application: Storage tanks.%MCEPASTEBIN%
Naval hr
Medium-strength structural steel for boat manufacturing. Depending on the area of the ship in which the steel is to be used, different toughness values can be requested at different temperatures and mechanical properties throughout the thickness of the sheet. These steels can be used in any shipbuilding application, such as in the hull or inside ships.

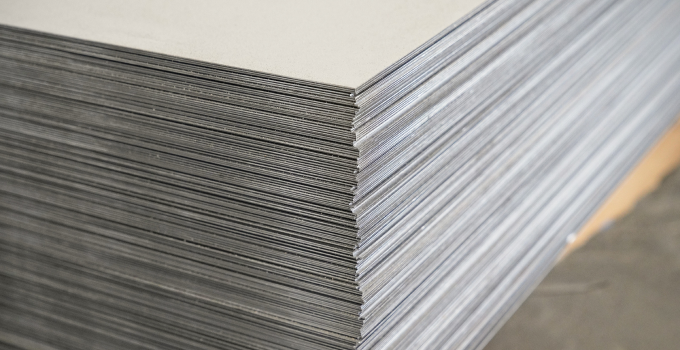

Galvanised sheets
Steel sheet subjected to a hot immersion process that covers the sheet with 100% zinc to prevent corrosion and wear.- Thicknesses: From 0.40 mm to 1.85 mm (Cal 26 to 14).
- Formats: 2 x 1 in meters and 4 x 8 in feet.
- Applications: It is used as a raw material in the refrigeration, construction, automotive, and steelworking industries.
HIGH ELASTIC LIMIT STRUCTURAL
These are hot-rolled structural sheets manufactured for cold forming, with a minimum elastic limit of 700 MPa. They are specifically designed to construct and manufacture stronger and lighter structures. steelworking industries. Applications- Accessories for cranes
- Tankers for transporting liquids
- Trailers for transporting goods

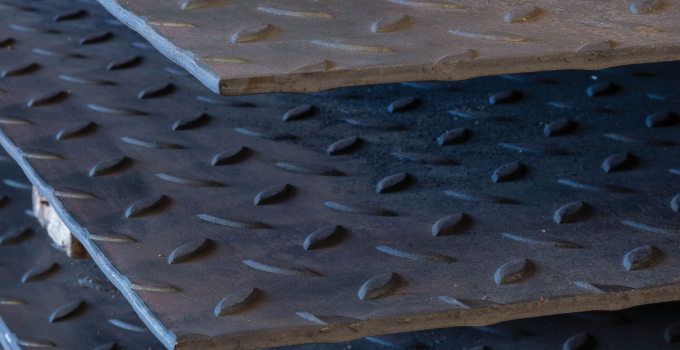

HR ALFAJOR ANTI-SLIP SHEETS
According to the ASTM A569 standard, these sheets are manufactured by hot lamination. They are engraved in high relief in the shape of tears to make them non-slip.

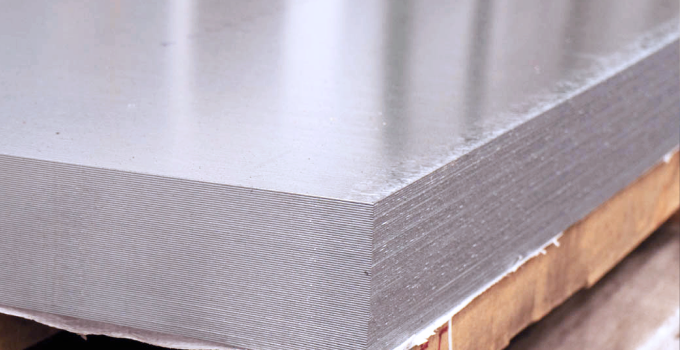

COLD ROLLED SHEETS
These steel sheets are cold rolled to exact thickness tolerances, providing a fine, smooth surface that creates an excellent base for painting. Cold-rolled steel plates and sheets are easy to drill, shape, and weld.

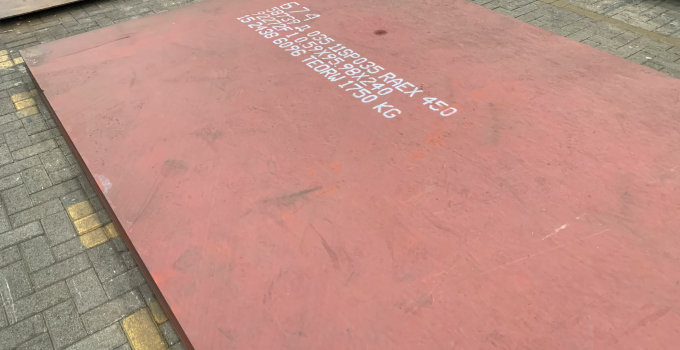

ANTIWEAR SHEETS
Anti-wear steels have high hardness and mechanical properties that increase the useful life of a steel surface in impact and friction applications caused by the action of abrasive materials. These steels have been developed for the most demanding conditions, in which the surfaces of steel structures are exposed to situations of high abrasion, wear and pressure.Do you need lifting
